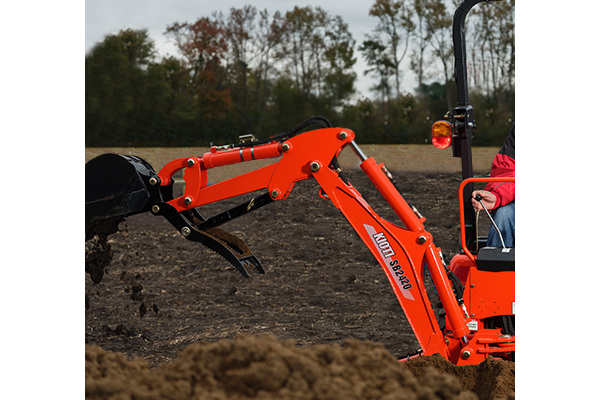

Call UsKioti SB2420
Features
- Four point mounting frame.
- Responsive two-lever hydraulic control with exceptional feathering characteristics.
- Anti-drop load-checks.
- Entire backhoe except for mounting frame is quick-detached from tractor.
Specifications
| Digging Depth (two foot flat bottom) | 72.8 in. (1,850 mm) |
| Reach (From center line of Swing Pivot) | 105.7 in. (2,684 mm) |
| Loading Height (Bucket at 60°) | 59.1 in. (1,500 mm) |
| Maximum Leveling Angle | 8° |
| Swing Arc | 150° |
| Transport Height (Maximum) | 68.1 in. (1,729 mm) |
| Transport Overhang | 41.3 in. (1,050 mm) |
| Bucket Rotation | 165° |
| Stabilizer Spread (Down Position) | 78 in. (1,981 mm) |
| Stabilizer Spread (Up Position) | 54 in. (1,372 mm) |
| Angle of Departure | 20° |
| Shipping Weight (Less bucket) | 635 lbs. (288 kg) |
| Bucket Digging Force | 2,105 lbs. (955 kg) |
| Dipperstick Digging Force | 1,183 lbs. (537 kg) |
| Operating Pressure | 1,885 psi (130 bar) |
