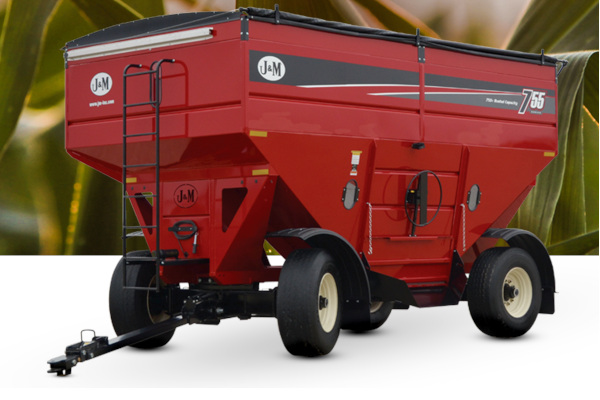

Call UsJ&M Manufacturing 755 Gravity Wagon
Features
Sleeved Spindles and Oil Bath Hubs
- Sleeved Spindles
For maximum strength, spindles are inserted into heat-shrunk sleeves for welding.
- Oil Bath Hubs
Synthetic oil provides superior bearing protection and excellent lubricant flow, even in the coldest weather. - Tie-Rods
Tie-Rods with clevis ends and replaceable bronze bushings make for easy maintenance.
Smooth and Quiet Ride
Rubber cushions mounted between the box and running gear provide a smoother and quieter ride.
60" Door with Oversized Wheel
55 Series gravity wagons feature a 60" door with an oversized door wheel for easy access from either side of the wagon. The heavy-duty gear reduction door opener allows you to open the large door with ease.
More Features
- Spring Assist Tongue
- Rocking Bolster Assembly
- Adjustable Tongue
- LED Lights
- Large Inspection Windows
- Side Discharge Chute
- Ladder
Specifications
| Models | 755 |
| Capacity - Box* | 760 Bushels |
| Door Width | 60" |
| Adjustable Chute Height | 14" to 19" |
| Hopper Steel | 12 & 9 Gauge |
| Understructure Runners | 3"x6" |
| Taillights | Standard |
| Front Ladder | Standard |
| Center Dump Deflector | Optional |
| Running Gear Capacity | 24 Ton - HD |
| Spindles Diameter | 3 3/8" |
| Wheels | 22.5x13 - 10 Bolt |
| Tires | 16.5-22.5 or 18-22.5 |
| Optional Hydraulic Brakes | 4-Wheel Drum |
| Weight | 7,050 lbs. |
