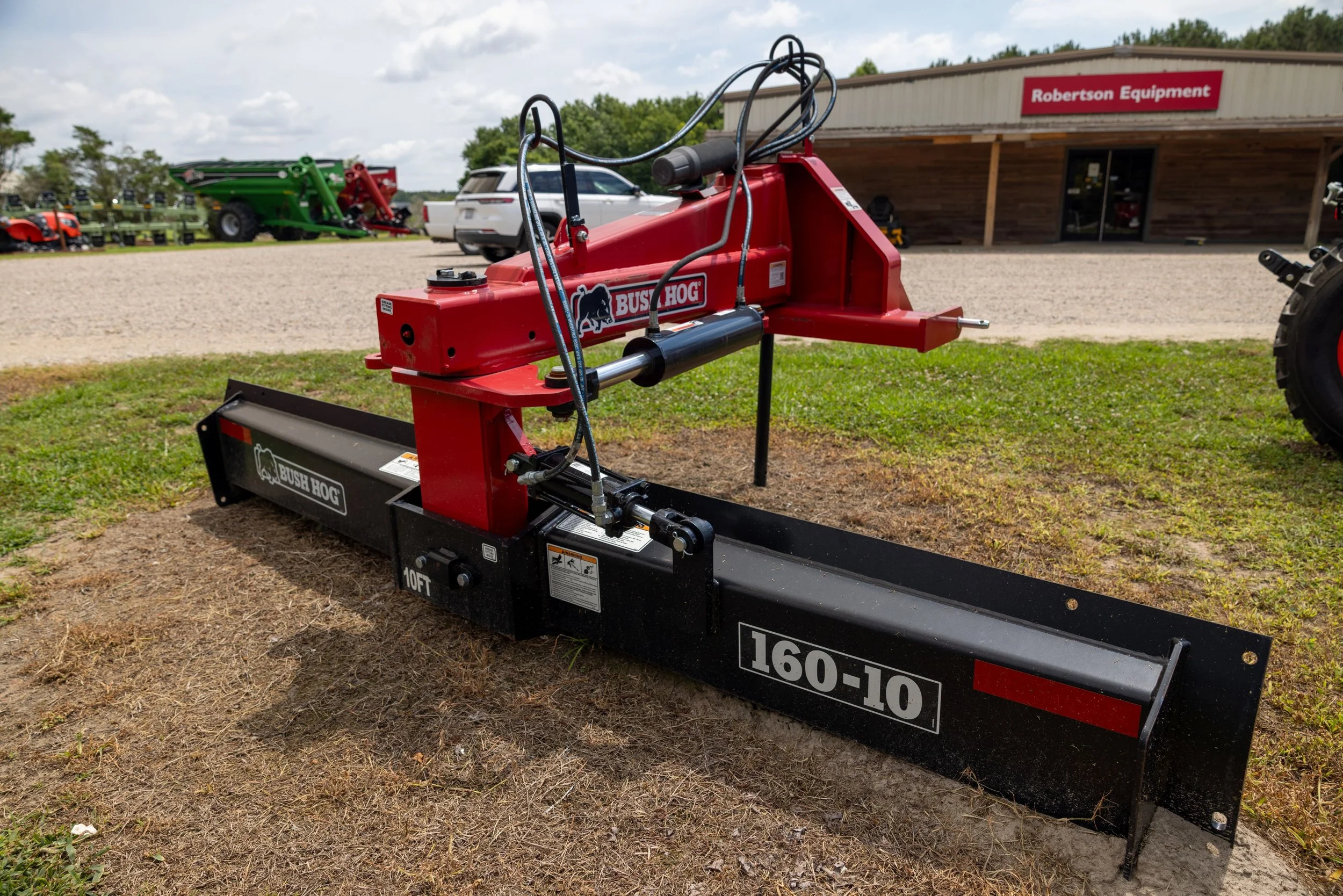

Bush Hog 160 Series Rear Mounted Blades
The Bush Hog 160 Series Rear Mounted Blades are built for demanding grading and earthmoving applications on the farm, ranch, and jobsite. Whether you're maintaining roads, building terraces, shaping drainage, cleaning feed lots, or removing snow, the 160 Series delivers the strength and versatility needed to tackle tough work.
These heavy-duty rear blades feature manual or hydraulic tilt, angle, and offset adjustments, allowing operators to adapt quickly to changing terrain and working conditions. A reversible moldboard, reinforced construction, and standard parking stand make the 160 Series a dependable solution for years of service.
-
Moldboard Width: 10 ft.
Moldboard Height & Thickness: 18 in. × 1/2 in.
Cutting Edge: 1/2 in. × 6 in.
Hitch: Category II & III 3-Point, Quick Hitch Compatible
Approximate Weight: 1,339 lbs. (8 ft.) | 1,459 lbs. (10 ft.)
Maximum Tractor HP (2WD): 190 HP (8 ft.) | 160 HP (10 ft.)
Maximum Tractor HP (Front Wheel Assist): 160 HP (8 ft.) | 135 HP (10 ft.)
King Pin Diameter: 4 in.
Tilt Adjustment: 15° Up or Down (Manual or Hydraulic)
Offset Adjustment: 37 in. Left or Right (Manual or Hydraulic)
Angle Adjustment: 45° Left or Right in Forward & Reverse Position (Manual or Hydraulic)
Skid Shoes: Optional
End Plates: Optional
Parking Stand: Standard
Hydraulics: Optional
Cutting Edge
1/2 in. × 6 in.
Hitch
Category II & III 3-Point, Quick Hitch Compatible
Approximate Weight
1,339 lbs. (8 ft.)
1,459 lbs. (10 ft.)
Maximum Tractor HP (2WD)
190 HP (8 ft.)
160 HP (10 ft.)
Maximum Tractor HP (Front Wheel Assist)
160 HP (8 ft.)
135 HP (10 ft.)
King Pin Diameter
4 in.
Tilt Adjustment
15° Up or Down
(Manual or Hydraulic)
Offset Adjustment
37 in. Left or Right
(Manual or Hydraulic)
Angle Adjustment
45° Left or Right
Forward & Reverse Position
(Manual or Hydraulic)
Skid Shoes
Optional
End Plates
Optional
Parking Stand
Standard
Hydraulics
Optional
-
Heavy-Duty Moldboard Construction – Built from high-strength steel to handle grading, ditching, snow removal, and road maintenance in demanding conditions.
Multiple Blade Adjustments – Blade angle, tilt, and offset adjustments provide exceptional versatility for a wide range of grading applications.
Replaceable Cutting Edge – Hardened, reversible cutting edge extends service life and reduces maintenance costs.
Durable Three-Point Hitch Design – Category I or II hitch compatibility (model dependent) ensures a secure connection and easy attachment to most tractors.
Versatile Year-Round Performance – Ideal for maintaining gravel roads, leveling soil, landscaping, backfilling, cleaning ditches, and clearing snow with a single implement.
